Quadra4 Accessories
| Model | Catalog Number | Description |
|---|---|---|
 |
120686 | Contaminated Tip Removal Assembly |
 |
320-30 | 96/384 Plate / Reservoir Nest, Standard Version 1-1/2" High (Used on Quadra 3/4 ) |
 |
320-31 | 1536 Plate Nest (Used on Quadra 3/4) |
 |
320-34 | 96/384 Plate Reservoir Nest, Short Version 1" High (Used on Quadra 3/4) |
 |
320-40 | 384 PCR Plate Nest (Used on Quadra 3/4) |
 |
320-50 | Tip Loading Fixture , 96 Well 450ul Head (Used on Quadra 3/4) |
 |
320-51 | Tip Loading Fixture , 384 & 96 Well 55ul SV Head (Used on Quadra 3/4) |
 |
320-52 | Tip Loading Fixture (Used on Pipetting Head Tip & Seal Power Wash System) |
 |
320-53 | Tip Loading Fixture , 96 Well 20ul DSV Head (Used on Quadra 3/4) |
 |
330-10 | BarCode Reader with Installation Kit. Used on Quadra 3 & Quadra 4 (4000 Series ONLY) 4100 Series - See 410-10 |
 |
340-35 | Teflon Coated Aluminum Reservoir |
 |
4000-730 | Quadra 4 Command System Software (MS Windows) |
 |
890-710-12 | Keyboard with Trackball, USB, Wireless (Used on Quadra 4) |
 |
OM4000 | Quadra 4 Operator's Manual |
 |
120322-02 | Touch-Off Stage Assemblyy (Quadra 4 SPE/LTD - 4000 Series) |
|
120322-03 | Touch-Off Stage Assembly (Quadra 4SPE or LTD - 4100 Series) |
 |
196-503 | SPE Vacuum Box w/ Control ModuleIncludes: 020484 & 330-59 |
|
410-10 | BarCode Reader with Installation Kit. Used on Quadra 4 (4100 Series ONLY) |
 |
020484 | SPE Vacuum Box Control Module ONLY |
 |
027107-01 | PCR Tube Support Plate (Used on Quadra 3 / 4) |
 |
120329-01 | Shaker Nest Auxiliary Power KitIncludes: Power Supply, Adapter, & Line Cord(Used with 320-75, 320-75J, 520-75, 520-75J Shaker Nest)NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
120955-02 | Mirror Rack Nest Assembly (New Style), Quadra 4 |
 |
120973-01 | 8 Tip Transfer Tool (Required when doing Serial Dilutions) |
 |
196-506 | Thermal Retention Reservoir (Used with Disposable Reservoirs) |
 |
300-52 | Pipetting Head Alignment Fixture |
 |
300-60 | Pipetting Head Tip & Seal Power Wash / Back Flush SystemIncludes: 300-61 and 300-62NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
300-61 | Pipetting Head Tip & Seal Power Wash System ONLY |
 |
300-730-04 | Quadra 3 Command System Software - CD ONLY (Version 4.2.1. And Higher) |
 |
320-11 | Low Volume Serpentine Reservoir, White Teflon(Use with 384SV Pipetting Head) |
 |
320-32 | 384 Tip Alignment Block for 384 & 1536 Pipetting (Quadra 3/4 & Quadra Plus) |
 |
320-33 | 96 Tip Alignment Block for 384 & 1536 Pipetting (Quadra 3/4 & Quadra Plus) |
 |
320-384 | Low Volume Serpentine Reservoir, White Delrin(Use with 384SV Pipetting Head) |
 |
320-54 | Tip Adapter Plate, Set of 5 (96 Well 20ul DSV Pipetting Head) Used with Quadra 3/4 |
 |
320-55 | Plate Spacer, Set of 5 (96 Well 20ul DSV Pipetting Head) Used with Quadra 3/4 |
 |
320-70 | Magnetic Nest - 96 Well, POST Design with Standard Magnet Configuration(Used with Quadra 3/4) |
 |
320-70A | Magnetic Nest - 384 Well PCR Plates (Used with Quadra 3/4) |
 |
320-75 | Shaker Nest Assembly (Used with Quadra 3/4)Note: If Unit is Used Off-Line, P/N 120329-01 (-02, etc.) Shaker Nest Auxiliary Power Kit isRequired |
 |
320-96 | Low Volume Serpentine Reservoir, White Delrin(Use with 96SV Pipetting Head) |
 |

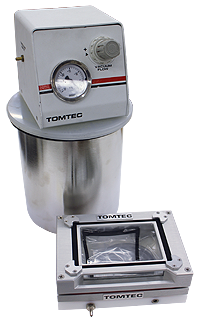

330-54 | Semi-Automated Filtration System Includes: 330-58 MANUALLY REGULATED MINI VACUUM TRAP and 330-59 SPE Vacuum Box(Used with Quadra 3 SPE/4 SPE) |
 |
330-56 | AutoHand Option - Integrated Robotic Hand Only - (Factory installed)Used with Quadra 3/4 |
 |
330-57 | Automated Vacuum Box (Used with Quadra 3/4) |
 |
330-58 | MANUALLY REGULATED MINI VACUUM TRAP(Used with Quadra 3 SPE/Q4 SPE & 330-54 Semi-Automated Filtration System.) |
 |
330-59 | SPE Vacuum Box Option (No Control Module) Used with Quadra 3 SPE/4 SPE and as Vacuum Box Assembly Replacement) |
 |
330-95 | Quadra AC Interface Control SystemIncludes: Control Unit, Line Cord, Communication Cable, & FuseUsed with Q96, Q3 ,& Q-Plus to allow switching of up to (2) AC Accessories thru QuadraProgramming.NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
340-21 | Heated Nest, Round Bottom (115-230VAC/50-60HZ) Quadra 3/4(Used with Round Bottom Microtiter Plates)NOTE: Requires 340-20 Control Module |
|
340-22 | Heat/Chill Nest (Peltier) (115-230VAC/50-60HZ) Quadra 3/4(Used with Reservoirs or Flat Bottom Microtiter Plates)NOTE: Requires 340-20 Control Module |
 |
4340-50 | PSID -2 ( Positive Sample Identification Module ) - (100-115VAC - 50/60Hz) |
 |
828-001-10 | Null-Modem Cable, DB9 Female to DB9 Female, 10 ' Long(Quadra 3 Communication Cable) |
 |
300-62 | 24VDC Standalone Autotrap System ONLYIncludes: Autotrap, Power Supply, Line Cord, & Accessories)(Replaces: 96-10, 96-11, 96-19) (Used with 300-60 Powerwash & Backflush System)NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
020689-01 | Peristaltic Pump, Dual HeadUsed with all Tip Washing Systems, Autogizers, & Recirculating ReservoirsNOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
120281 | Stacker Cassette Assembly - 25 Plate CapacityIncludes: (1) 020448 Cassette Assy and (1) 020807 Follower Plate Assy(Used with Quadra 3/4, Quadra Plus, Quadra Wash II, and Autosealer) |
 |
120282 | Dual Cassette Assembly - Increases Stacker Capacity to 50 PlatesIncludes: (1) 020448 Casette Assembly and (1) 020923 Adapter Assembly |
 |
121056-31 | Ultrasonic Tip Washing Control Module and Bath (w/Umbilical & Line Cord) - ONLY (MATCHEDSET) - Used with Quadra 3/4NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
121056-41 | Ultrasonic Tip Washing Control Module and Bath (w/Umbilical & Line Cord) - ONLY - (MATCHEDSET) - DMSO RESISTANT (Polypropylene Bath Body, Tygon Tubing in Umbilical) - Used withQuadra 3/4NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
196-135-31 | Constant Level Recirculating Reservoir SystemIncludes: Reservoir, Peristaltic Pump, and Tubing KitUse with Quadra 3/4NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
196-370-31 | Live Bottom Continuous Flow Reservoir SystemIncludes: Continuous Flow Reservoir and Peristaltic Pump (Used with Quadra 3/4)NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
196-460-31 | Ultrasonic Tip Washing System - Includes: 121056-31 Control Module & Bath Assy, PeristalticPump w/Tubing, & Accessory Kit - Used with Quadra 3/4NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
196-460-41 | Ultrasonic Tip Washing System - DMSO RESISTANT Includes: 121056-41 Control Module & BathAssy, Peristaltic Pump w/Tubing, & Accessory Kit - (Polypropylene Bath Body, Tygon Tubing inUmbilical) Used with Quadra 3/4NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
 |
320-10 | Low Volume Serpentine Reservoir, White Teflon(Use with 96SV Pipetting Head) |
 |
330-23 | Tip Rack Press Assy (Tip Feeder)(Quadra 3 /4) |
 |
340-20 | Control Module, Heat & Heat/Chill Nest(Used with 340-21, 340-22, 340-24, 540-21, 540-22, & 540-24 Heat/Chill Nest Assemblies)NOTE: PURCHASE ORDER MUST INDICATE REQUIRED VOLTAGE & FREQUENCY |
|
340-24 | Heated Nest, Flat Bottom (115-230VAC/50-60HZ) Quadra 3/4(Used with Reservoirs or Flat Bottom Microtiter Plates )NOTE: Requires 340-20 Control Module |
 |
4000-470 | 21 CFR Part 11 - Data Security, Digital Signature & Audit Trail Module(Requires 4000-730 Quadra Command Software Version) |
 |
4000-64-01 | Regulated Postive Pressure Option (Factory Install)Use with Quadra 4SPE or 4NS "SPE"w/ 330-58 or 430-65 Mini Vacuum TrapInstallation Includes: SPE Pressure Block Assembly w/ Fixture, Electronic Pressure Regulator,Side Cover, Tubing, and Hardware. NOTE: MINI VACUUM TRAP NOT INCLUDED |
|
4000-64-02 | Regulated Postive Pressure Option (Factory Install)Use with Quadra 4 ONLYw/ 330-58 or 430-65 Mini Vacuum TrapInstallation Includes: SPE Pressure Block Assembly w/ Fixture, Electronic Pressure Regulator,Side Cover, Tubing and Hardware. NOTE: MINI VACUUM TRAP NOT INCLUDED |
 |
430-54 | Automated Filtration System. Includes: 430-65 AUTO REGULATED MINI VACUUM TRAP and 330-59 Vacuum Box(Used with Quadra 4SPE & Quadra $NS "SPE") |
 |
430-55 | Fully Automated Filtration System (Factory Install)Includes: 330-56 AutoHand, 330-57 Autovac Box, &430-65 Auto Regulated Mini Vacuum TrapUsed with Quadra 4 |
 |
430-65 | AUTO REGULATED MINI VACUUM TRAP(Used with Quadra 4SPE, Quadra 4NS "SPE" and 430-54 Automated Filtration System) |
 |
IQOQPQ 4100 | Quality Performance Procedure (Quadra 4 - Model 4100-10) |
